The EFB stan-002 is designed for the lowest possible cost and material expenditure with the simplest design. It consists of movably connected modules, each consisting of a box and three folded U-profiles. The enclosed self-tapping screws make it possible to securely fix a underlay on the frame.
- weight: 6,6 kg
- transport dimensions: 1200 x 780 x 42 mm
- parts: 14 (3+12) + 3 screws
- material: heavy corrugated cardboard (remark recommended), screws of PP
- assembly time: ca. 4 Min
- dimensions
- height: 400 mm
length: 2100 mm (3 Module, anpassbar)
width: 600 mm - load: max. 120 kg

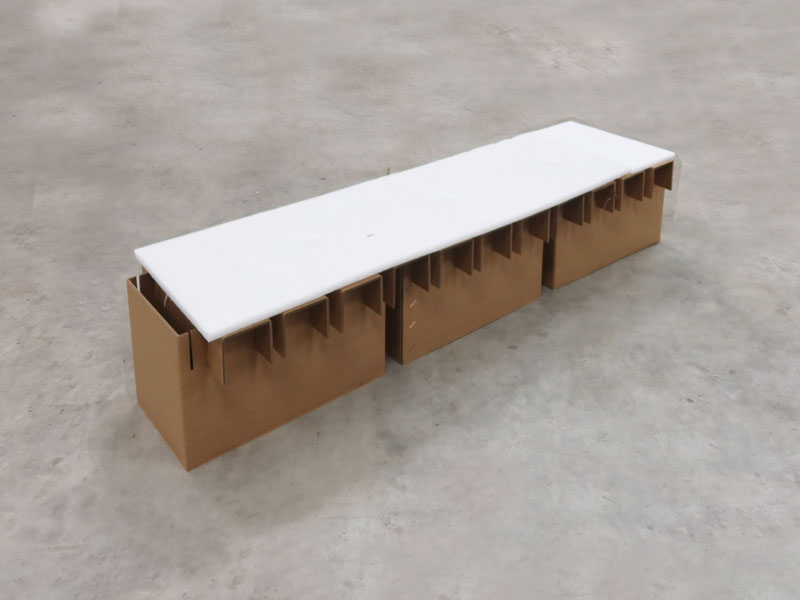

- requires underlay (for exmple EM stan-001 bzw. 002)
- requires base 600 x 2000 mm (see matresses)
- similar modules allow division of labour for assembly line construction
- any length adjustment due to modularity (e.g. for children/large persons)
- ‘soft’ feet (no flooring damage)
- Continuously reinforced „slatted grate“
- Repairability due to interchangeability of modules/parts

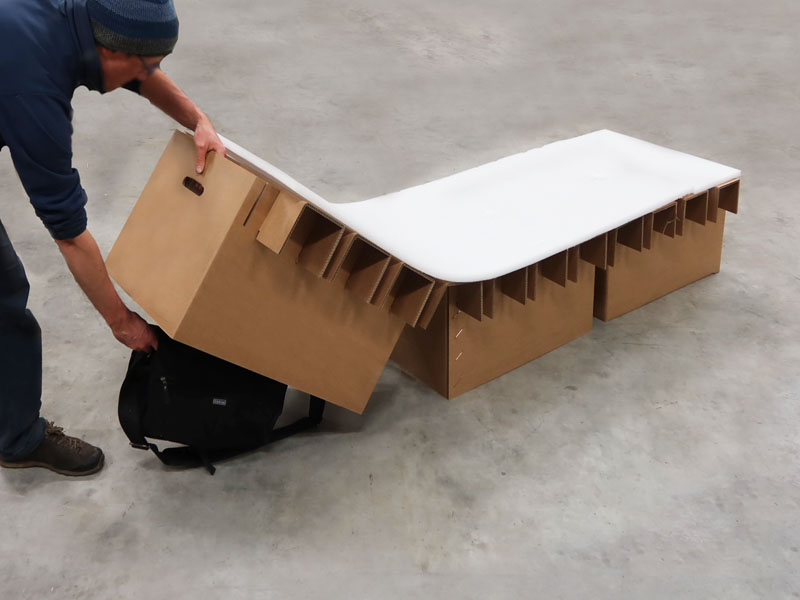

- Closed storage space for personal belongings

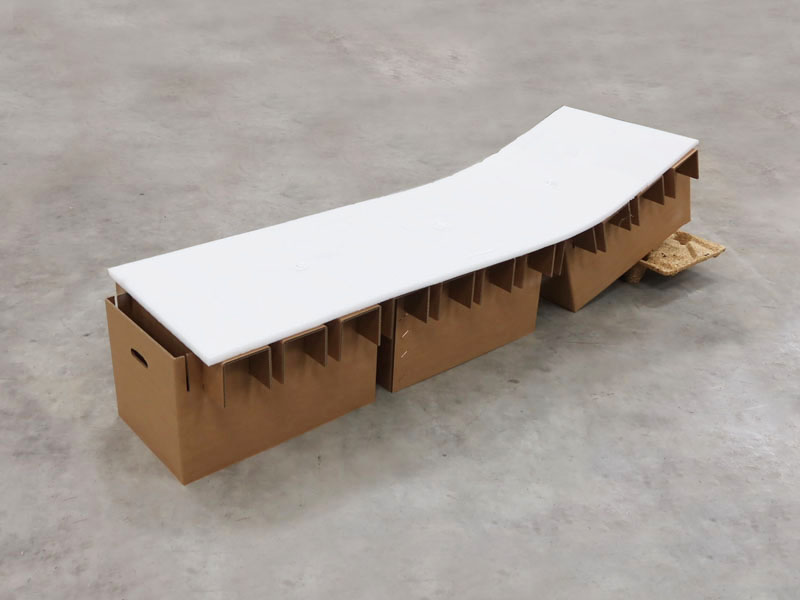

- partially erectable (aid required)
- simplest construction without instructions
fielding:
- emergency accomodation (tents, gyms, extra bed for hotel, ...)
- crew quarters
- medical care unit
- dining room as a bench
- ...
